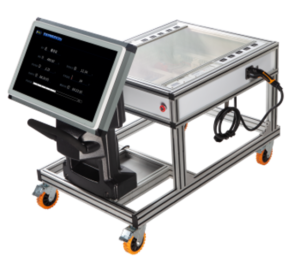

Intelligent Charging Management Integrated Training System

Teaching purpose:

The integrated training system for intelligent charging management is composed of charging equipment and a high-voltage battery charging device system, which can truly show the working status of the new energy vehicle charging system, and can perform functional experiments such as battery charging and power conversion separately, reducing beginners in the original car Consumables loss and high voltage hazards during training.

Product features:

1. The detailed principle block diagram shows the real and operational charging system;
2. The panel adopts 4mm-thick corrosion-resistant, impact-resistant, pollution-resistant, fire-resistant, and moisture-proof high-grade aluminum-plastic panels, and the surface is treated with a special process spray primer; the panel is printed with a color circuit diagram that will never fade and a schematic diagram of the working principle; students can intuitively compare Schematic diagrams and physical objects of the electric vehicle charging system, understanding and analyzing the working principle of the electric vehicle charging system;
3. Real AC charging pile charging port, easy to learn the definition and function of charging port pins;
4. Supporting charging pile smart charging card and recharge software.
5. The charging signal measuring device is installed on both sides of the system stand, which can meet the requirements of 4 stations simultaneously without interference.
6. Intelligent fault assessment system; It mainly consists of two independent systems, the teacher fault setting terminal and the student answering terminal. The system is installed on the mobile terminal. Teachers can use the mobile teaching terminal to connect to the fault setting module of the integrated teaching aid for fault setting. After the failure setting is completed, students use the mobile learning terminal to perform assessment and answer questions, and the assessment results are automatically stored in the equipment execution module, which is convenient for teachers to inquire about each student’s performance.

Support teaching tasks:

Each set of equipment is equipped with a corresponding course resource package, which is reflected in the form of training tasks. Each training task includes 6 links: task description, task objectives, knowledge preparation, task preparation, task implementation, and task assessment. Some examples of the teaching tasks included are as follows:
Training task 1: Recognizing the installation position and appearance of the charging module;
Training task 2 The function of the charging module is connected with the line;
Training task 3: AC/DC conversion control inside the charging module;
Training task 4: composition of electric energy and management system;
Training task 5: potential equalization control and display;
Training task 6 Internal capacitor and control circuit board;
Training task 7: recognition of plug-in gun of AC charging pile;
Training task 8: The role of AC charging pile CC\CP line;
