Teaching purposes:

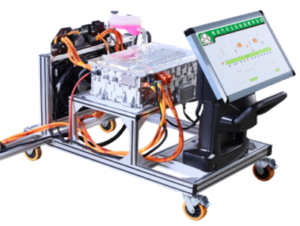

High-voltage electric control box / main controller training platform based on BY e5 original car high-voltage electric control box / main controller, high-voltage electric control assembly integrated two-level bidirectional AC inverter motor controller module, Car charger module, DC-DC converter module and high voltage power distribution module, leakage sensor, etc. The training platform has an intelligent fault assessment system, which is suitable for medium and high vocational colleges, general education colleges and training institutions. The teaching of structural principles of electric vehicles and the teaching of maintenance training.
Product features:
1) Modular Design:
High-voltage electric control box / main controller assembly adopts modular design, the original car high-voltage electric control box / main controller, AC DC charging port, high-pressure main controller cooling water pump, liquid storage tank radiator The installation is fixed on the professional base. The base is designed with low-voltage signal lines and high-voltage output line card slots. The high-voltage lines are installed with safety signs for identification during the teaching process.
2) Keep The Original Car Line Connection:
The high-voltage electric control box/main controller assembly is connected by the original car wiring harness. Parallel double plugs for measurement are installed next to each harness connector, which greatly reduces the line during signal detection. Loss, parallel plug marked with pin number, the number corresponds to the original circuit diagram pin number, to meet the needs of low-voltage signal detection of pure electric vehicle high-voltage electric control box and main controller during training. The relevant signals of the high-voltage control box/main controller are connected to the vehicle controller through the original vehicle harness, which satisfies the data diagnosis and dynamic data stream reading function during the training process.
3) Intelligent Fault Assessment System:
Consists of two independent systems: the teacher fault setting terminal and the student answering terminal. The system is installed on the mobile terminal. The teacher can connect with the fault setting module of the training platform to set the fault with the mobile teaching terminal connected to the WI-FI. After the fault setting is completed, the students use the mobile learning terminal to perform the assessment, and the scores after the assessment are automatically stored in the equipment execution module, so that the teacher can query the results of each student. The intelligent fault assessment system also has password management, fault name editing, assessment time setting, fault type setting and fault recovery testing function.
4) Product Process Standard:
The base frame of the equipment is constructed by two integrated aluminum alloy profiles of 40mm×40mm and 40mm×80mm. It is resistant to oil and corrosion and easy to clean. The table top is covered with 20mm thick color high-density composite board. The electrical installation part is strictly in accordance with The EU CE electrical certification standard is implemented and manufactured. The whole wiring harness adopts the connector with the safety strength to reach the IP64 military level. The wire harness damage caused by long-term training can be directly replaced in sections, eliminating the worries.
