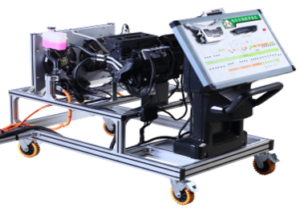

Picture for reference only
Teaching purposes:
The electric air conditioning system training platform is based on the BY e5 original car electric air conditioning system and PTC electric heating system. The training platform has an intelligent fault assessment system, which is suitable for medium and high vocational technical colleges, general education colleges and training institutions. Energy pure electric vehicle air conditioning refrigeration system and electric heating system structural principle recognition and maintenance training teaching.
Product features:
1) Modular design:
The air conditioning system training platform adopts modular design to install the original vehicle electric compressor, condenser, HVAC assembly, refrigeration pipeline, PTC, heater pipe, air duct, air conditioner controller and other components. It is fixed on the professional base and the operation control panel. The base is designed with low-voltage signal lines and high-voltage output line card slots. The high-voltage lines are installed with safety signs for identification during the teaching process.
2) Keep the original car line connection:
The electric air conditioning system training platform is connected by the original vehicle wiring harness. Parallel double plugs for measurement are installed next to each harness connector, which greatly reduces the line loss during signal detection. The parallel plug is marked with the pin number, number and original. The circuit diagram pin number of the plant corresponds to meet the needs of the low-voltage signal detection of the pure electric vehicle motor drive system, combination meter and brake system during the training process. The relevant signals of each control unit are connected to the vehicle controller through the original vehicle harness, which satisfies the data diagnosis and dynamic data stream reading function during the training process.
3) Intelligent fault assessment system:
consists of two independent systems: the teacher fault setting terminal and the student answering terminal. The system is installed on the mobile terminal. The teacher can connect with the fault setting module of the training platform to set the fault with the mobile teaching terminal connected to the WI-FI. After the fault setting is completed, the students use the mobile learning terminal to perform the assessment, and the scores after the assessment are automatically stored in the equipment execution module, so that the teacher can query the results of each student. The intelligent fault assessment system also has password management, fault name editing, assessment time setting, fault type setting and fault recovery testing function.
4) Product process standards:
The base frame of the equipment is constructed of two integrated aluminum alloy profiles of 40mm×40mm and 40mm×80mm. It is resistant to oil, corrosion and easy to clean. The table top is covered with 20mm thick color high-density composite board. The electrical installation part is strictly in accordance with the EU CE electrical certification standards. Manufactured, the whole set of harnesses adopts the connector with the safety strength to reach the IP64 military level. The harness damage caused by long-term training can be directly replaced in sections, eliminating the worries.
