Teaching Purposes:
The measuring terminal of ABS / EBD / EPS system is matched with the whole vehicle of BY. The measuring terminal has the function of signal measuring. It can be connected with the whole vehicle through the harness air plug according to the need in the course of using, so as to meet the practical teaching of fault diagnosis.
Product Features:

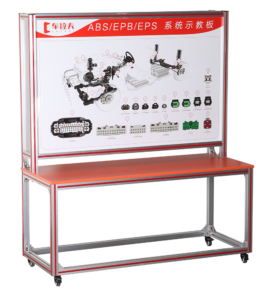

- The measuring terminal is connected with the whole vehicle by the connector of aviation plug and wire harness. The measuring terminal is equipped with a high-precision UV spray-painted vehicle structure. The three-dimensional structure diagram of the braking system is used to guide the position of the wire harness connecting plug corresponding to the steering system, and the three-dimensional model diagram of the corresponding plug and the plug are marked. Each pin position number is marked on the model diagram. The pin position number of each wire harness plug matches the circuit number of the original maintenance manual. It helps the trainees to recognize the pin position number of the plug and the installation position of the plug in the training process.
- Training items: The pin position is equipped with measuring terminals, which can be used for electric vacuum pump relay circuit detection, vacuum pump pressure sensor detection, EPB controller power supply detection, ESC CAN gateway circuit, motor detection circuit, EPB switching circuit, EPS system power supply system detection, angle sensor detection. Measurement, ESC CAN gateway system, EPS motor detection and so on.
- The measurement terminal adopts independent modular design, which does not affect the vehicle running function after disconnection. It can be moved according to the teaching environment. The system integrates intelligent fault assessment system. The main structure of the terminal is constructed of 40mm *40mm and 40mm *80mm two kinds of integrated aluminum alloy profiles, which are oil-resistant, corrosion-resistant and easy to clean. The platform is paved with 20mm thick color high density composite plate. The electrical installation part is manufactured strictly according to the European Union CE Electrical Certification standard. The whole harness is made of IP64 military grade connection with safety strength. The damage of wire harness caused by long-term training can be directly replaced by piecewise replacement.
