The Faults Master of the Prius Hybrid System

1. The system consist of: the engine electronic control system; the THS-ll control system; the battery management system.
2. The hardware part:
   1. It uses the main assembly of the Prius vehicle, includes: the engine ECU; the hybrid vehicle control module.
   2. The detailed functional simulation modules.
3. The function:
   1. Engine electronic control system.
   2. THS-ll control system.
   3. Battery management system.
   4. Faults inserting system.
   5. Simulation system.
   6. Signals simulation.
4. The training manual:
   1. The teacher’s manual.
   2. The student’s manual.
5. The working conditions:

The power requirements: AC 220V±10%, 50Hz. The ambient temperature: 0-40°C. The ambient humidity: no more than 90%.
Working conditions:
Ambient temperature: From -0°C to +40°C
Working humidity: ≤90%
Voltage: 220V±10%, 50H, 1 phase.

USE:

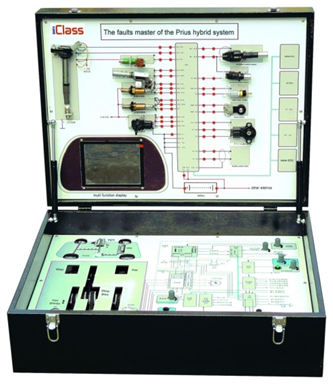

For training the students at secondary or higher vocational institutions about engine electronic control system of Prius hybrid system, common faults diagnosis and analysis and troubleshooting operation, the equipment is made from simulation hybrid system assembly, electronic control system, measure panel, fault insert system, movable stand, manual for students or teacher.
