Teaching Refit Vehicle (Used Car)

Teaching Refit Vehicle (Used Car)



Model : ILA-HVE-ZCXL



Brand : iLatest



Electric Car | EV Car Model | New Energy Vehicle

Teaching Purpose

Electric Vehicle E5 teaching refitted vehicle is the core equipment to complete the high-pressure maintenance of the whole vehicle, using the whole vehicle for high-voltage system fault detection and diagnosis teaching, used to restore the actual maintenance process of safe operation specifications, high-pressure operation flow and the use of professional high-pressure dangerous equipment. In order to facilitate the teaching of testing and reduce the loss of the whole vehicle, the reconfigured vehicle can be connected with the high-voltage drive system fault measuring terminal, ABS / EBD / EPS system fault measuring terminal and the electric air conditioning system fault measuring terminal for testing.

Product Features

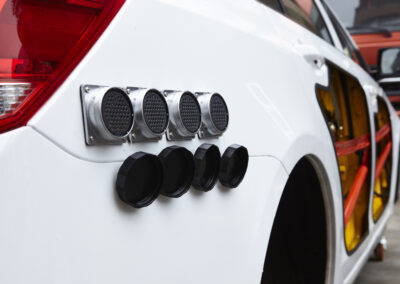

Refitting the special detection harness for the whole vehicle, it can be quickly docked with the relevant measurement terminals during the training, and the normal operation of the vehicle after disconnection does not affect each other. Measuring terminal of the three-dimensional spray-painting detection panel, students can find the installation position of each sensor actuator, the original factory circuit diagram corresponding to the sensor, actuator, and control unit foot identification number.
Intelligent Fault Assessment System: It is composed of two independent systems, the fault setting terminal for teachers and the student answer terminal, which is installed on the mobile terminal. Teachers can use the mobile measurement terminal connected with WIFE to connect with the fault setting module of the training platform for fault setting. After the failure settings are completed, the students use the mobile learning terminal to examine and answer the questions. After the examination, the results are stored in the execution module of the automatic device, which is convenient for teachers to inquire about the results of each student. The intelligent fault assessment system also has the functions of password management, fault name editing, assessment time setting, fault type setting and fault recovery testing.
