Teaching use
The charging pile is used for the charging method and charging principle of the electric vehicle, and the teaching practice of the charging failure, and it is used together with the whole vehicle.
Product features
Use environment:

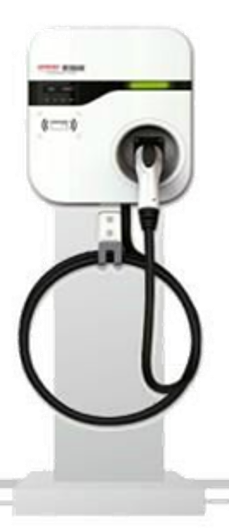

The 3.3KW AC charging pile can meet the teaching structure and working principle of the electric vehicle charging system.
Features
AC input leakage switch with overload protection, short circuit protection and leakage protection on the output side. The AC input is equipped with a Class D lightning arrester, with analog lightning and anti-voltage overload protection. The AC input is equipped with a smart energy meter for AC power metering.
Product specifications
Rated voltage 220V
Rated current 16A, 32A
Ambient temperature -20～+50°C
Connector Power Line Contacts AC220V, 32 A
Connector Control Line Contact DC30V, 2A
Connector mechanical operating life ≥10000
Secondary mean time between failures MTBF≥8760 h
Protection level IP54
Size 280mmx400mmx150mm (width x height x thickness)
